What is Kubernetes how can I use it?

Kubernetes, also known as K8s, is an open-source system for automating deployment, scaling, and management of containerized applications.

Kubernetes is a platform for managing containerized workloads and services. that make easy declarative configuration and automation.

Overview

Kubernetes works in a cluster, consisting of a set of worker machines, these machines are called nodes, that run containerized applications, and every cluster has at least one worker node.

Also, a Kubernetes cluster has a control plane, it manages the worker nodes and the cluster state.

These are the various components that you need to have for a complete and working Kubernetes cluster.

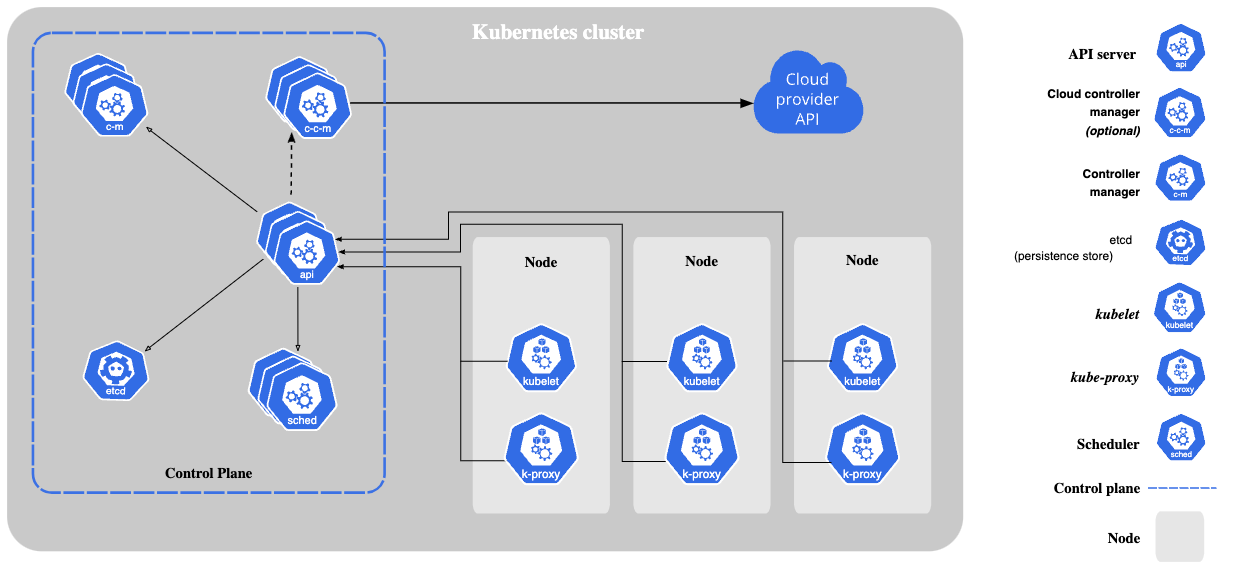

The components of a Kubernetes cluster by kubernetes.io

In my opinion, this section is very important, mainly if you want to have a differential in your career, and this knowledge will help me a lot in many situations to solve problems.

Sometimes we only have an interest in knowing how works the motor of a car when we have a problem on the highway and the car

Kubernetes Control Plane Components

The Control Plane manages the cluster state. It makes decisions about the cluster, for example, increasing the number of pod replicas or scheduling something.

• kuber-api - is the central point of communication from the Kubernetes cluster it is the front end of the Kubernetes control plane.
• etcd - it's basically the store used for Kubernetes for all cluster data. Make sure you have a backup plan for your etcd.
• kube-scheduler - It is responsible for watching newly created pods, checking what are available nodes and assigning the pods created for the available node.
• kube-controll-manager - runs controller process. It is responsible for cluster orchestration.

The Control Plane must not run any pods

Nodes Components

The node components are in every node of the cluster, they are responsible for maintaining the pods running and providing the Kubernetes runtime environment.

• Kubelet - is a node agent, that manages the state of nodes, so it receives the control plane commands
• kube-proxy - It manages the network and network resources of nodes and redirects to containers.
• Container runtime - this component enables the Kubernetes to run containers.

Let's install a K8s Cluster

Before you follow this step, please install the Kind according to your environment

https://kind.sigs.k8s.io/docs/user/quick-start/

For this series, let's prepare an environment for you to follow the examples.

For now, let's prepare a local environment to focus only on the fundamentals at the end of the series, we will together create a Kubernetes cluster like a production environment.

There are many options to create a K8s locally

• Minikube
• Kind
• k3d

I've been using Kind and it has been serving me

Let's use the mode of Multi-node clusters

kind: Cluster
apiVersion: kind.x-k8s.io/v1alpha4
nodes:
  - role: control-plane
  - role: worker
  - role: worker
  - role: worker

Basically, we're talking to Kind, "Please, create for me, a cluster with 4 machines. 1 Control Plane and 3 workers nodes"

Now, run the command in your terminal:

kind create cluster --config kind-config.yml --name programmingonmars

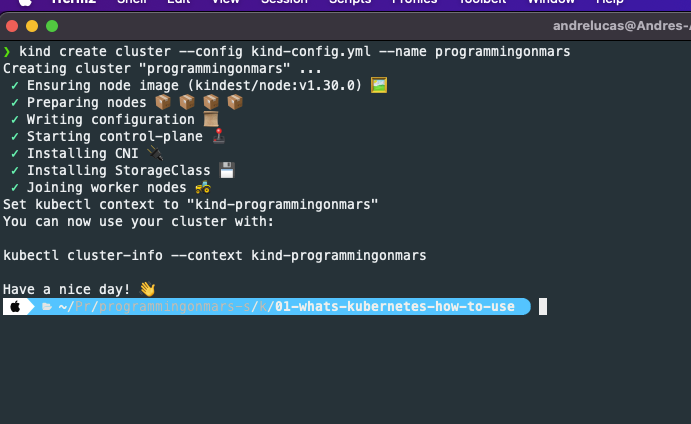

You should have this result below

To use your k8s cluster, run the command below

kubectl cluster-info --context kind-programmingonmars

Now we're connected in our k8s cluster!

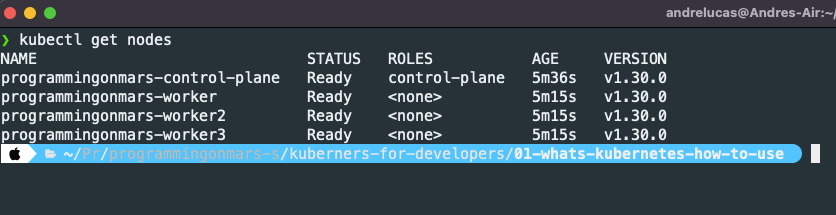

Let's check the nodes using the command:

kubectl get nodes

This is so cool we created 3 works and 1 control plane as we declared in the kind-config.yml

How Kind Works?

Kind is a tool for running local Kubernetes clusters using Docker container "nodes". kind was primarily designed for testing Kubernetes itself, but may be used for local development or CI.

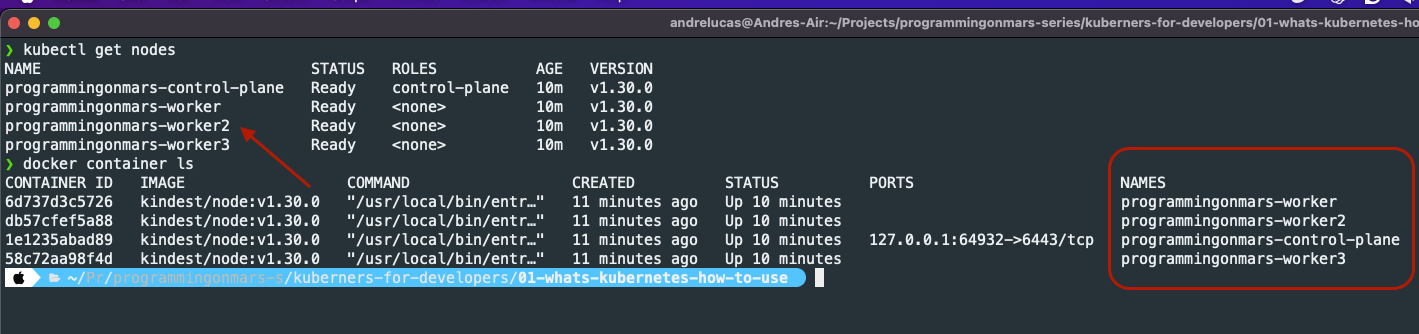

Só, if we run the command:

docker container ls

We can see 4 containers running

Now you're ready to start your new journey in the Kubernetes world, let's run a First Application on Kubernetes
